To view the current prices, you must first log in or create a new account.

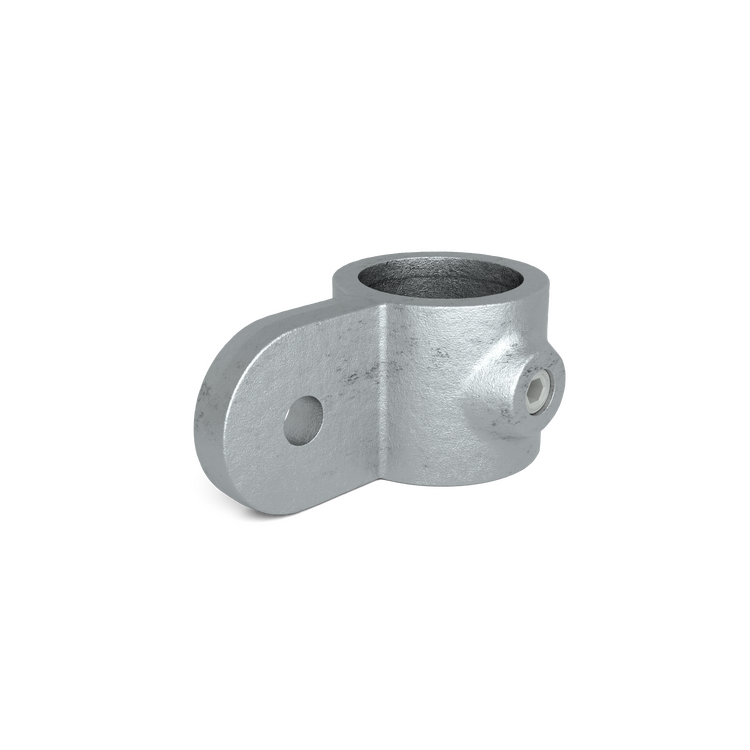

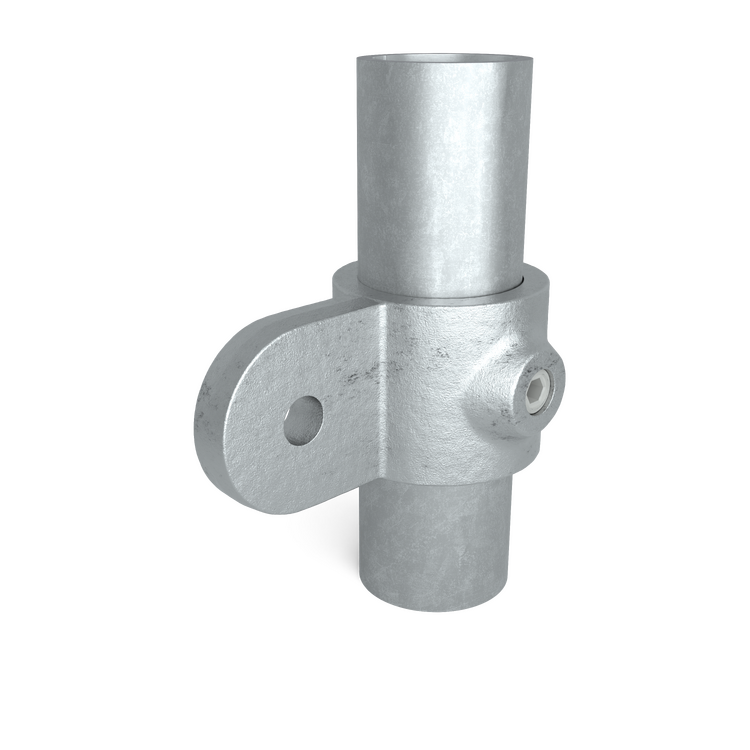

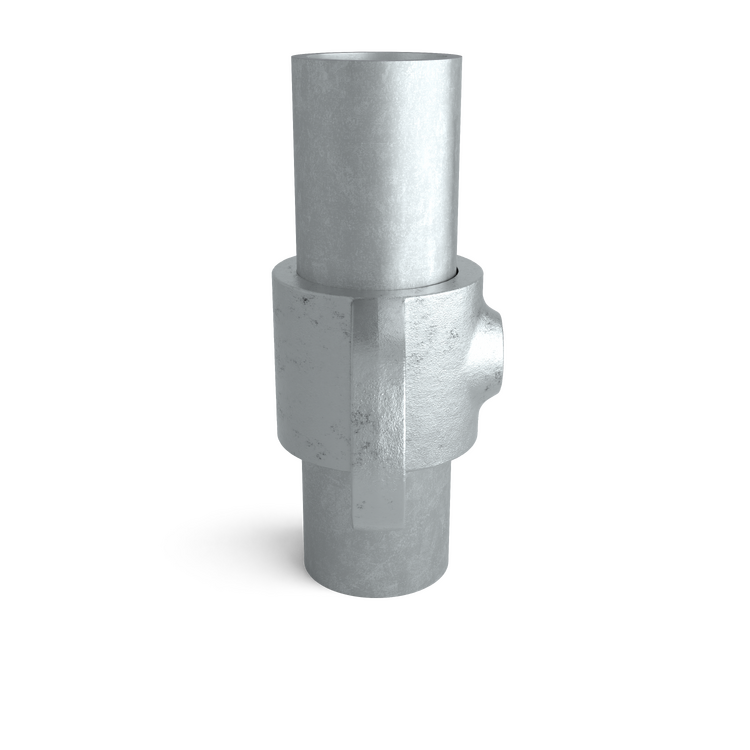

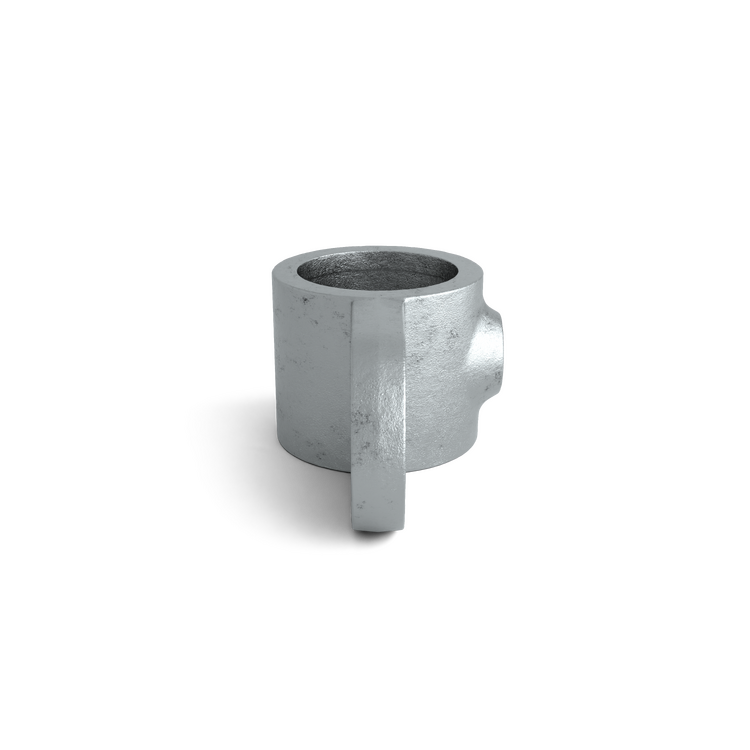

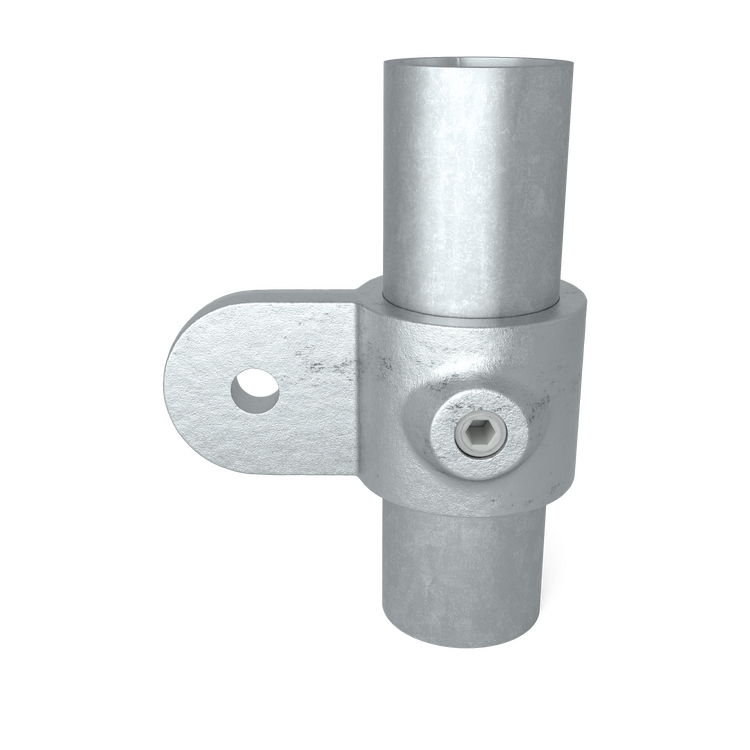

Male Single Lug. Used with Type 42 for swivel fittings, also used for fixing panels and boards.

	608036B	608036C	608036D	608036E	608036F

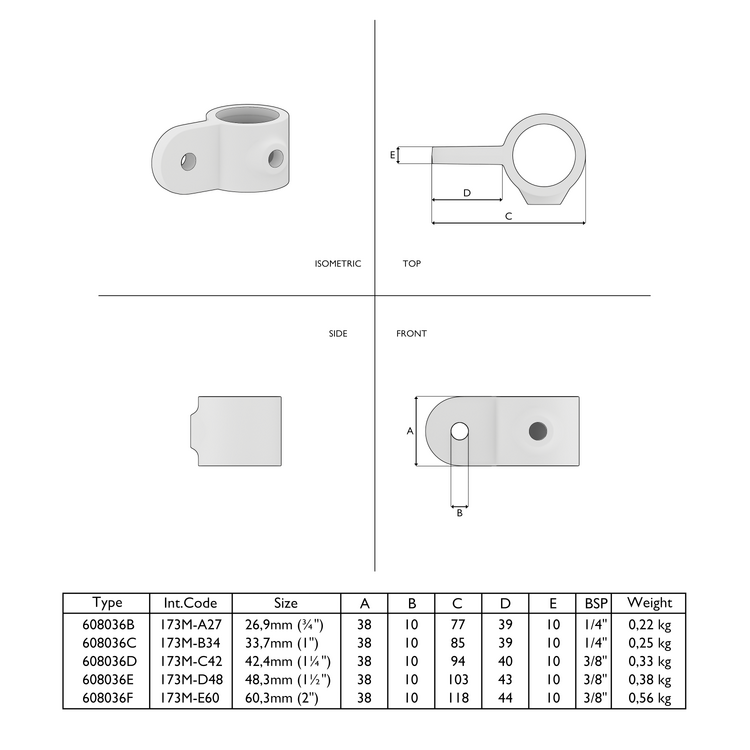

System specifications
Size	A (26.9 mm)	B (33.7 mm)	C (42.4 mm)	D (48.3 mm)	E (60.3 mm)
Type	Male single lug	Male single lug	Male single lug	Male single lug	Male single lug
Color	Silver	Silver	Silver	Silver	Silver
Specifications tubefittings
Size	B	C	D	E	F
Weight (kg)	0.15	0.25	0.32	0.34	0.47
Outer diameter (")	¾	1	1¼	1½	2
Amount in box	95	80	55	45	25
Masterbox specifications
Width (cm)	24	24	24	24	24
Height (cm)	22.5	22.5	22.5	22.5	22.5
Depth (cm)	28.5	28.5	28.5	28.5	28.5
General additional specifications
Measurements screw	1/4" x 12,5 mm	1/4" x 12,5 mm	3/8” x 12,7 mm	3/8” x 12,7 mm	3/8” x 12,7 mm
