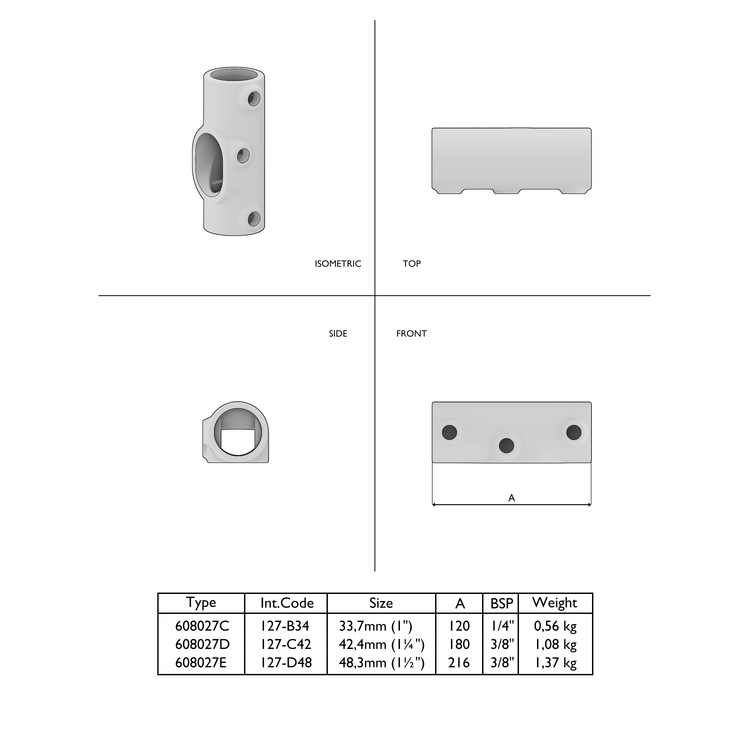

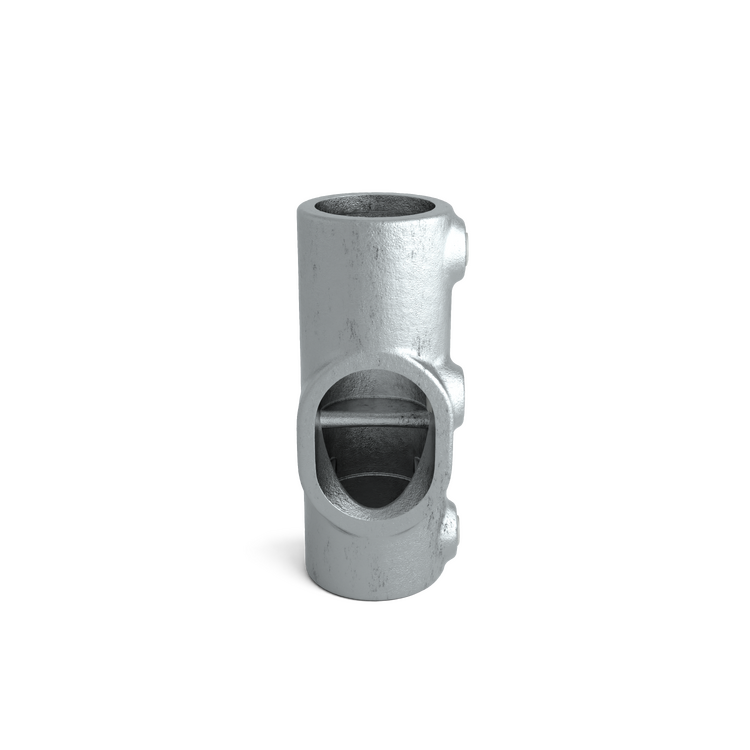

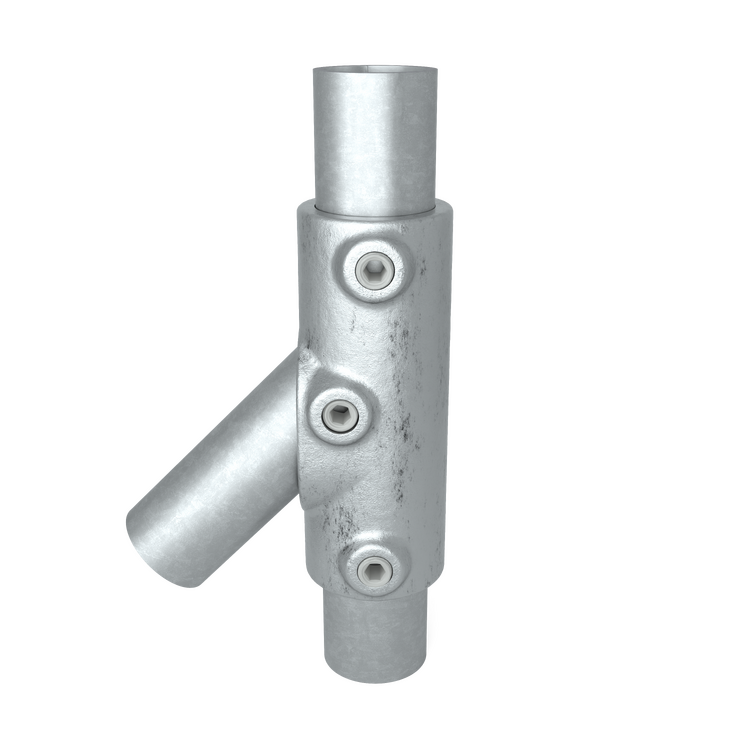

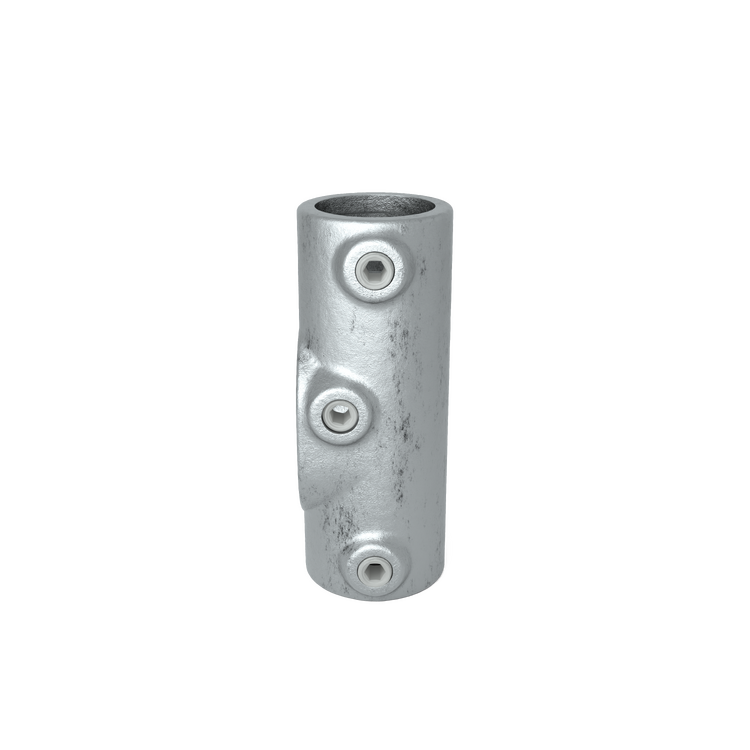

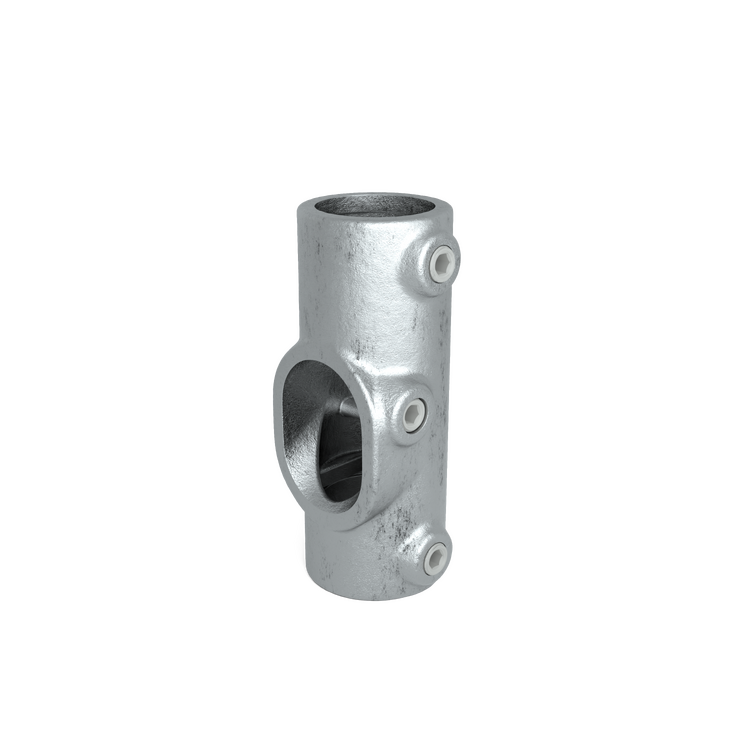

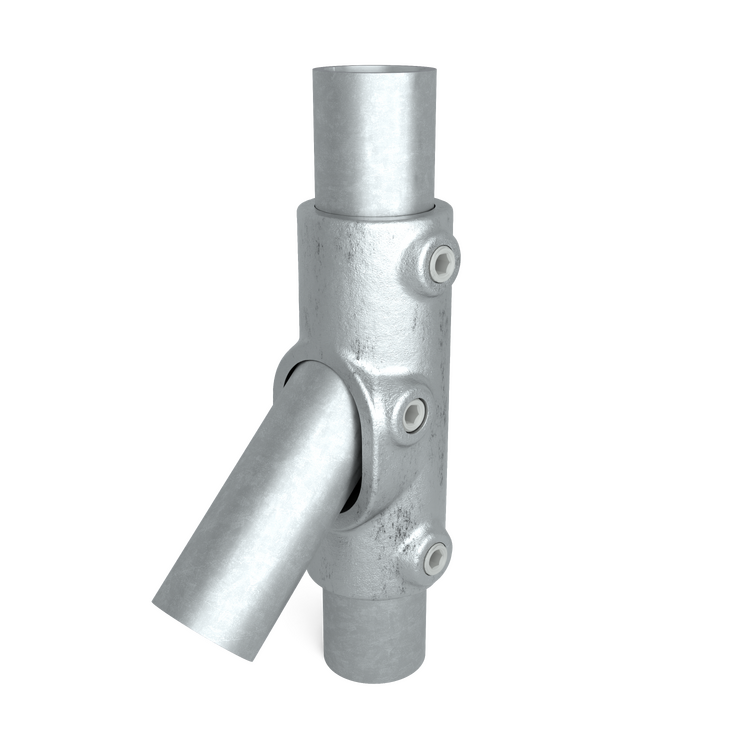

Railing attachment up to 45°. Tube fitting for railing with an angle of inclination of up to 45°.

	608027C	608027D	608027E
System specifications
Size	B (33.7 mm)	C (42.4 mm)	D (48.3 mm)
Type	Rail. attach up to 45°	Rail. attach up to 45°	Rail. attach up to 45°
Color	Silver	Silver	Silver
Specifications tubefittings
Size	C	D	E
Weight (kg)	0.57	0.82	1.02
Outer diameter (")	1	1¼	1½
Amount in box	20	15	10
Masterbox specifications
Width (cm)	24	24	24
Height (cm)	22.5	22.5	22.5
Depth (cm)	28.5	28.5	28.5
General additional specifications
Measurements screw	1/4" x 12,5 mm	3/8” x 12,7 mm	3/8” x 12,7 mm
